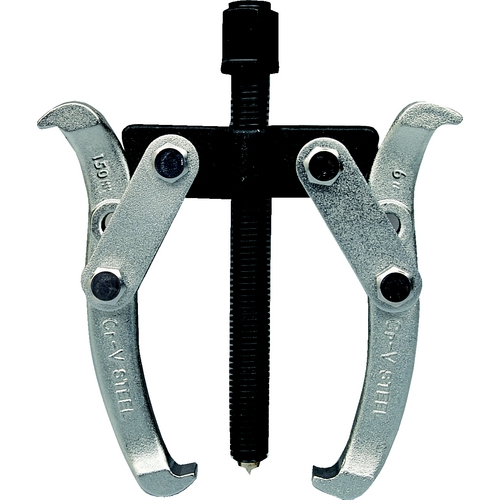

6" 2-JAW DOUBLE ENDED MECHANICAL PULLER

Kennedy Mechanical Bearing Pullers

Industrial Reversible/Double-Ended Adjustable
Used for the removal of gears, ball races, bearings, pulleys and sprockets from a drive shaft. With reach capacities of 75mm, 100mm, 150mm and 200mm. All sizes have double-ended, adjustable, reversible legs and can be used for internal and external
applications.
Selection: Always use a three jaw puller whenever possible. This produces better load distribution across the jaws and easier and safer removal of the part. Determine what 'spread' is needed - this is the width of the part to be removed. The reach capacity is determined by the depth of the part to be removed.

All pullers can be assembled for internal or external use.

2 Jaw Pullers - Supplied with both 2-legged yoke

2 Jaw -Internal Assembly
2 Jaw -External Assembly

Order Code KEN5033060K

Product Number MP2200

Spread 60-150mm

Reach 120mm

Thread Length 240

ยี่ห้อ KENNEDY
